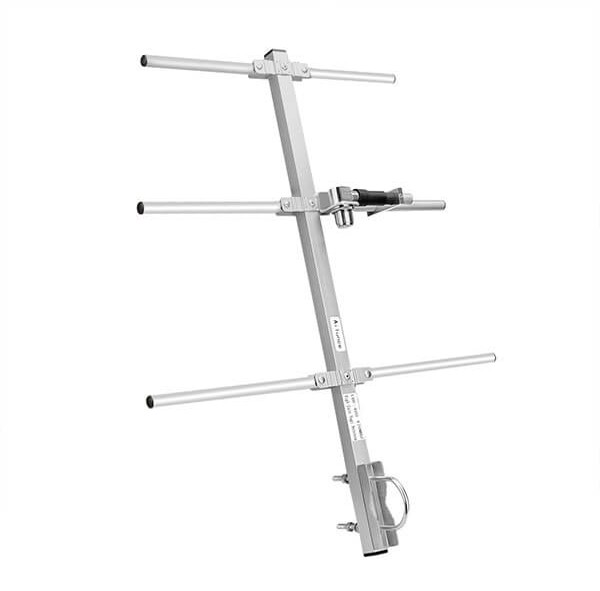

YI-DZ-3
Back
Feature
3 Elements

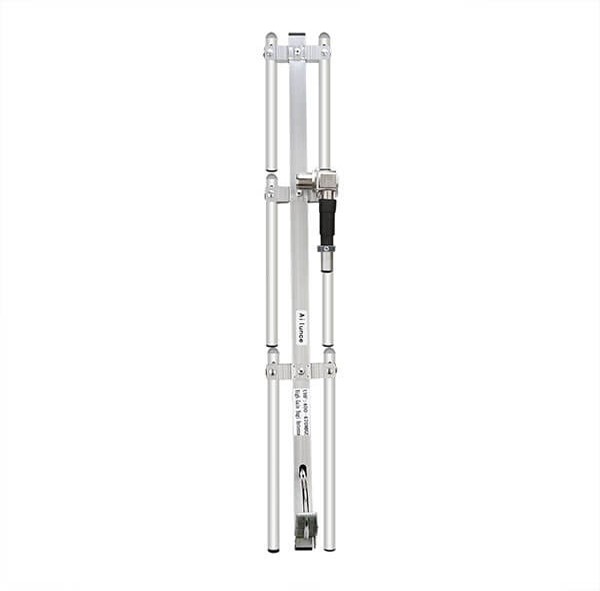

Foldable
High Gain
Strong directionality
Strong anti-jamming
Realize long distance communication
Simple construction and easy assembly and disassembly
Lightweight and sturdy, easy to set up
High-cost performance
| Electrical Specifications | |
| Frequency Range | 400~470 MHz |
| Bandwidth | 20MHz |
| Impedance | 50Ω |
| VSWR | ＜1.5 |
| Gain | 7 dBi |
| Polarization | Vertical |
| Horizontal 3dB Beam Width | 53° |
| Vertical 3dB Beam Width | 45° |
| Front To Back Ratio | >15 dB |
| Maximum Power Input-watts | 100W |
| Lighting Protection | Direct Ground |

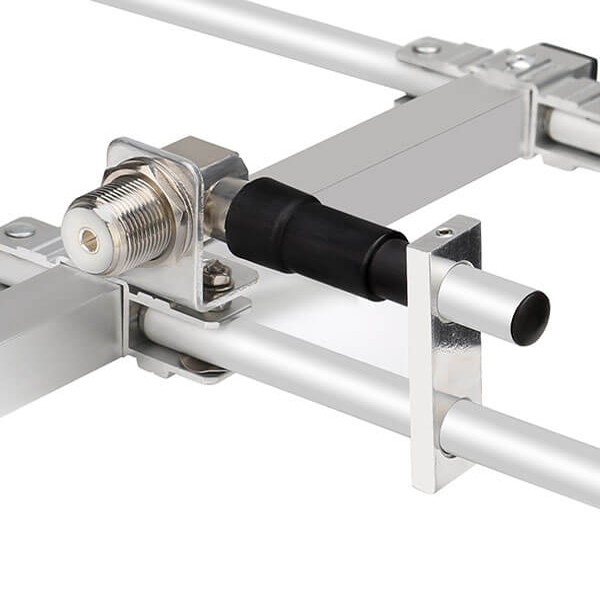

| Connector | SL16.K |
| Mechanical Specifications | |
| Size | 452 x 351x 47mm |

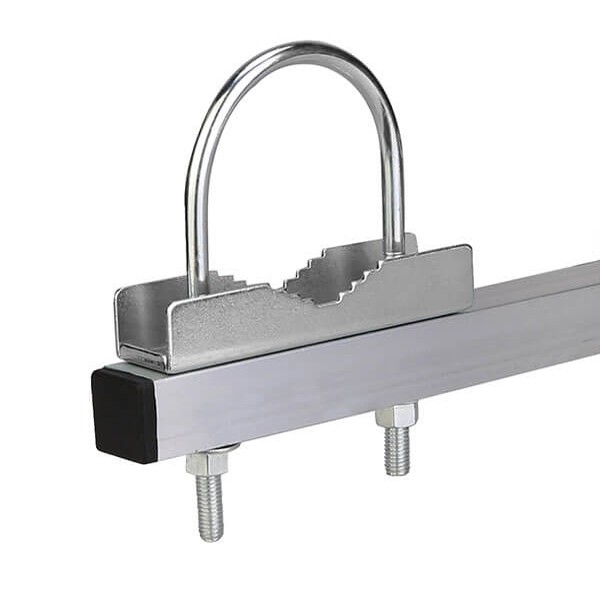

| Mounting hardware | Ø30～Ø40 mm |
| Rated Wind Velocity | 60 m/s |
| Weight | 0.4Kg |
